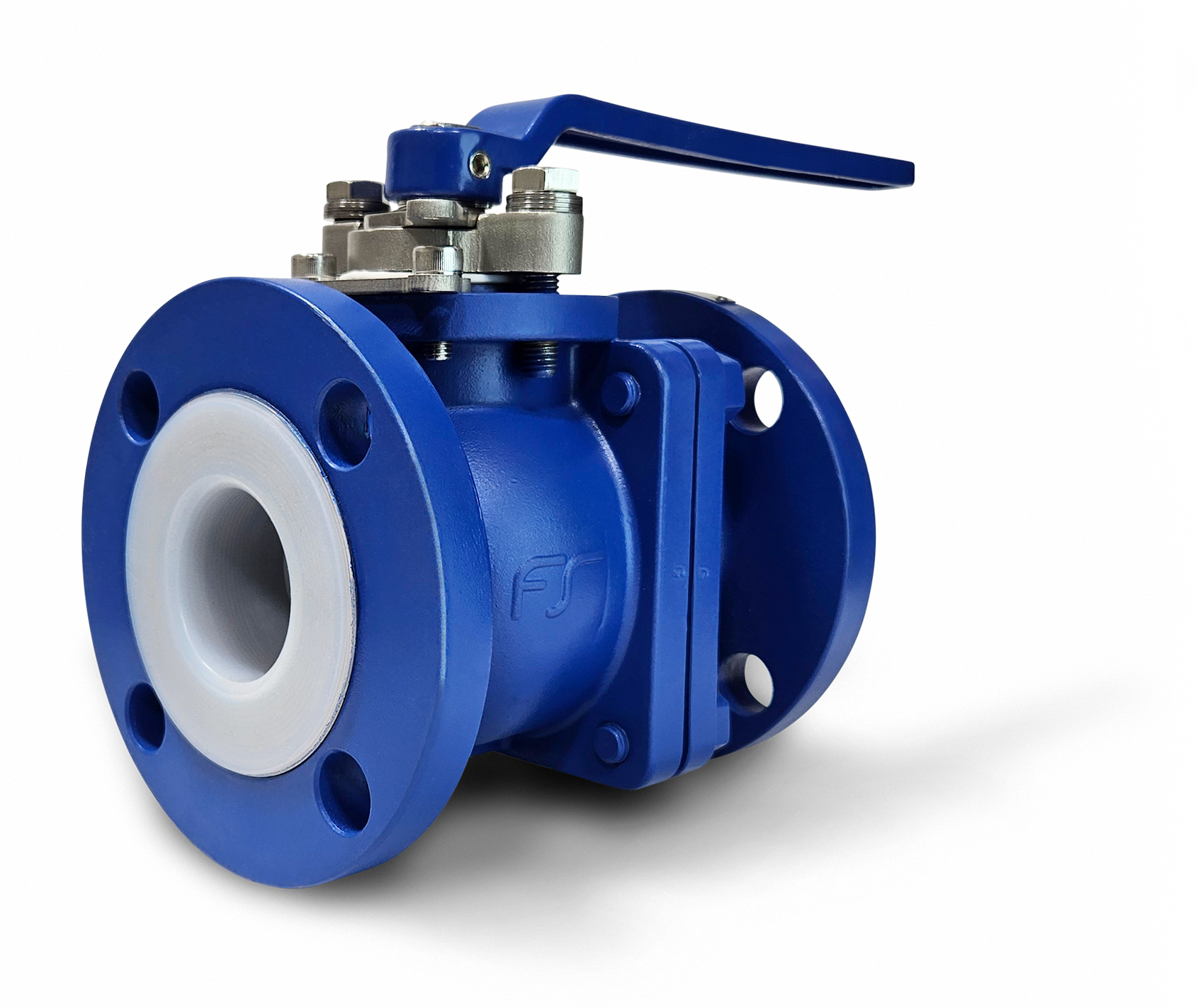

Lined Ball Valve
Re-engineered!
1-Piece Ball and Stem
ASME CLASS 150 • SIZE 1/2" to 6"
MAIN PRODUCT FEATURES
MAIN PRODUCT FEATURES
Full Port Design
Straight-through, full-size round port ensures unrestricted flow, delivering high efficiency and minimal pressure loss.
Low Emission Live Loaded Stem Seal
Fully adjustable stem seals with pre-compressed PTFE packing rings, paired with default packing glands, for reliable long-term, trouble-free service.
1-piece Ball & Stem
Eliminating internal failure points and drive-key wear, delivering high-torque durability and precise alignment in aggressive service.
Advanced Unpigmented PFA Lining
Virgin PFA Lining no contamination fluid handling and body and stem locking grooves to prevent liner collapse under severe conditions.
ISO 5211 Mounting Interface
Standard ISO 5211 actuator mounting dimensions enable the integration of standardized hardware, resulting in a competent valve-actuation package.
LEARN MORE About the BL1 Series
V-port evolution
Standard 2-Piece V-Port Opening
Exposed Flat-Seat Geometry
Susceptible to chemical erosion and degradation over time, requiring frequent maintenance and component replacement.
Moderate Pressure Sealing
Degrades under continuous cycling, increasing the risk of inline leakage and unplanned system downtime.
Localized Cavitation & Seat Wear
High-velocity flow across a thin seat edge causes localized turbulence, wire-drawing, and uneven seat erosion during throttling.

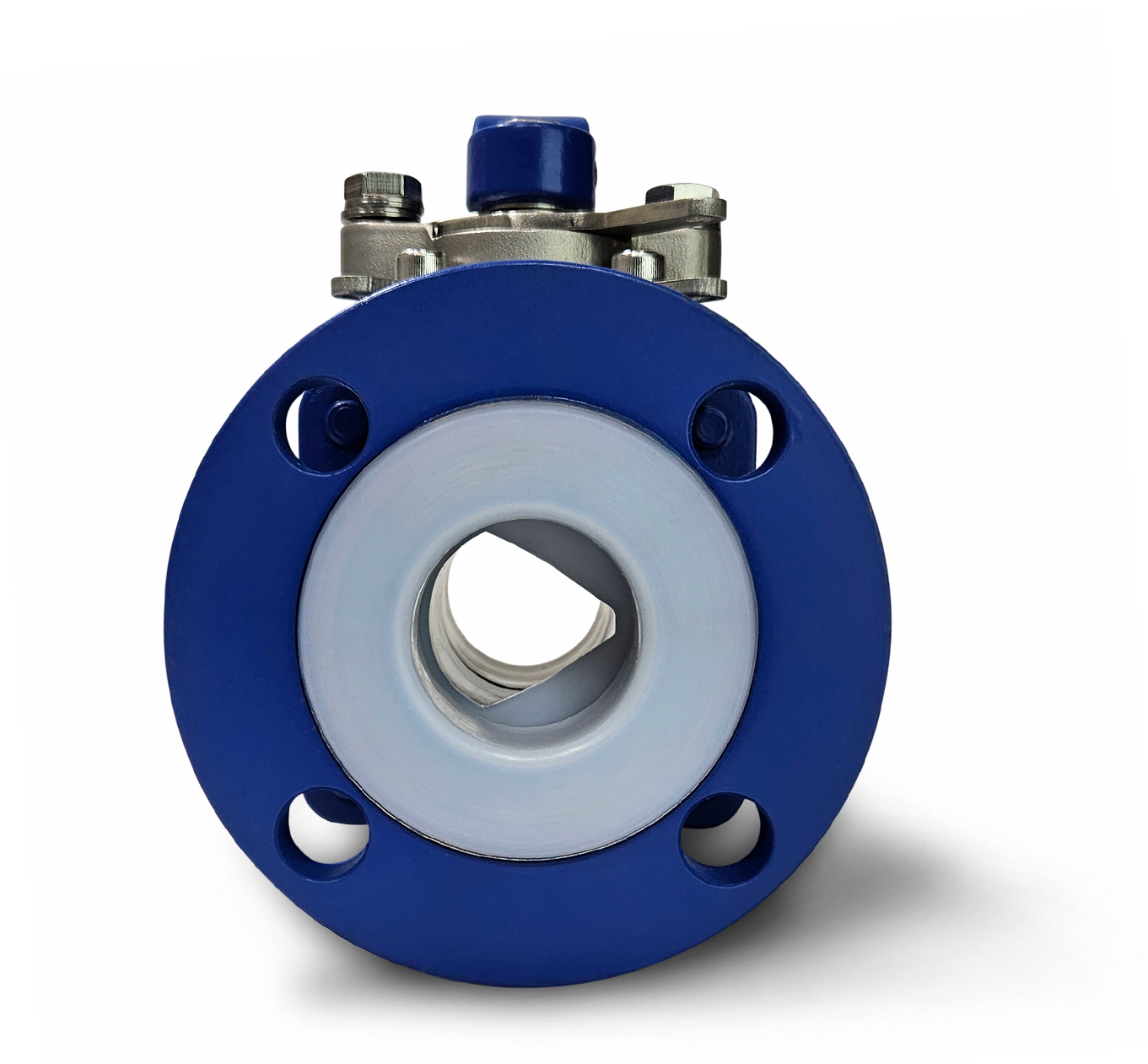

Integrated 1-Piece V-Port Ball & Stem
Heavy-Duty Solid Molded Wall
1-piece ball with a thick PFA lining, providing superior corrosion resistance and extended service life in erosive fluids.
High-Pressure Zero-Leakage Seal
Enhanced wall rigidity maintains consistent high-pressure sealing contact, eliminates inline leakage, and reduces downtime.
Optimized Flow Dynamics & Balanced Load
The integrated 1-piece V-port evenly distributes fluid pressure, minimizing seat wear and ensuring linear throttling control.
V-port evolution
Standard 2-Piece V-Port Opening
Integrated 1-Piece V-Port Ball & Stem
Exposed Flat-Seat Geometry
Susceptible to chemical erosion and degradation over time, requiring frequent maintenance and component replacement.
Heavy-Duty Solid Molded Wall
1-piece ball with a thick PFA lining, providing superior corrosion resistance and extended service life in erosive fluids.
Moderate Pressure Sealing
Degrades under continuous cycling, increasing the risk of inline leakage and unplanned system downtime.
High-Pressure Zero-Leakage Seal
Enhanced wall rigidity maintains consistent high-pressure sealing contact, eliminates inline leakage, and reduces downtime.
Localized Cavitation & Seat Wear
High-velocity flow across a thin seat edge causes localized turbulence, wire-drawing, and uneven seat erosion during throttling.
Optimized Flow Dynamics & Balanced Load
The integrated 1-piece V-port evenly distributes fluid pressure, minimizing seat wear and ensuring linear throttling control.
APPLICATIONS
FluoroSeal Lined Ball Valve with 1-piece Ball and Stem is suitable for severe duty across key chemical and industrial processes.
Chemical
Petrochemical
Oil
Gas
Fertilizers
Steel Making
Power Generation
Water
Pharmaceutical
Food Processing
BL1 SERIES IN STOCK & READY
for fast shipping!
